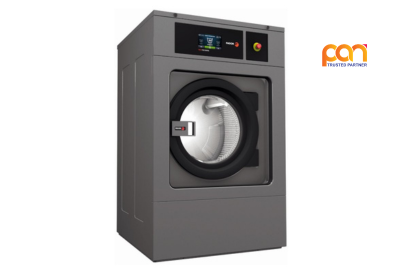

Fagor LN-28 TP2 E Industrial Washing Machine 28kg

Technical Specifications

DRUM
Load capacity (1:9 / 1:10) 31 / 28 Kg
Volume 280 l
Diameter 770 mm
Depth 585 mm
GENERAL DETAILS
Washing speed / Spinning speed 48 / 682 r.p.m.
G-factor 200
Maximum force transmitted 3.68 ± 6 kN
Frequency-dynamic force 8.02 Hz
Noise level <70 dB
Coin laundry version Yes
Double drain Optional
Weighing system / Tilting system No
SLUICE option Yes
DOOR
Height center door / Height door 700 / 400 mm
Diameter 460 mm
POWER
Motor 4 kW
Electric heating power 18 kW
Total electric power 19.2 kW
Total power (steam model) 4 kW
CONNECTIONS
Steam inlet 3/4"
Maximum steam consumption 15 kg/h
Water inlet 3/4"
Water main pressure 2 – 4 kg/cm²
Maximum water consumption 164.8 l/h
Drain 3"
Drainage capacity 200 l/min
DIMENSIONS
Dimensions (W x D x H) 884 x 1075 x 1340 mm
Weight (Net / Gross) 403 / 431 kg
Volume 1.84 m³
View full Technical specifications

Technical Specifications

DRUM
Load capacity (1:9 / 1:10) 31 / 28 Kg
Volume 280 l
Diameter 770 mm
Depth 585 mm
GENERAL DETAILS
Washing speed / Spinning speed 48 / 682 r.p.m.
G-factor 200
Maximum force transmitted 3.68 ± 6 kN
Frequency-dynamic force 8.02 Hz
Noise level <70 dB
Coin laundry version Yes
Double drain Optional
Weighing system / Tilting system No
SLUICE option Yes
DOOR
Height center door / Height door 700 / 400 mm
Diameter 460 mm
POWER
Motor 4 kW
Electric heating power 18 kW
Total electric power 19.2 kW
Total power (steam model) 4 kW
CONNECTIONS
Steam inlet 3/4"
Maximum steam consumption 15 kg/h
Water inlet 3/4"
Water main pressure 2 – 4 kg/cm²
Maximum water consumption 164.8 l/h
Drain 3"
Drainage capacity 200 l/min
DIMENSIONS
Dimensions (W x D x H) 884 x 1075 x 1340 mm
Weight (Net / Gross) 403 / 431 kg
Volume 1.84 m³
Full package installation services
12 months warranty
Online support 24/7

Fagor LN-28 TP2 E industrial washing machine is part of the LN TP2 series from Fagor (Spain), designed for professional laundry operations such as hotels, hospitals, factories, and industrial laundries.

The machine features a high extraction force of G-factor 200, an advanced TP2 control system, and a robust stainless steel AISI 304 construction, ensuring reliable performance, durability, and efficient operation.


TP2 Control System – Smart and Flexible

  • 7” user-friendly and fully programmable control interface
  • USB connection for programming and data management
  • IoT platform (FagorKonnect) for remote monitoring and data analysis
  • Video display capability (instructions, ads, etc.)
  • Supports 37 languages
  • 8 standard dosing signals

High Performance and Efficiency

  • G-factor 200 reduces residual moisture after washing
  • Optimized water and chemical consumption
  • Flexible load ratio (1:9 and 1:10)

Versatile Operation

  • Suitable for OPL (on-premise laundry) and COIN (self-service)
  • Supports electric or hot water operation
  • Includes wet cleaning features
  • Customizable according to operational needs

Connectivity and System Management

  • IoT connectivity via FagorKonnect
  • Remote technical service support
  • Laundry management for OPL and COIN systems
  • Optional remote payment integration

Durable Industrial Design

  • Hard-mounted washer design
  • Drum and tub made of stainless steel AISI 304
  • Equipped with 3 water inlets
  • Skinplate outer panels
  • Optional CB and WRAS certifications

Easy Maintenance

  • Hinged control panel for easy access
  • Standardized components for quick replacement
  • Technical menu for monitoring and diagnostics

Fagor LN-28 TP2 E is a reliable industrial laundry solution, designed to deliver consistent performance, operational efficiency, and long-term durability.
