Stacked Laundry Equipment
Stacked laundry equipment is a solution that combines a washer-extractor and tumble dryer in a single stacked configuration, making use of vertical space instead of expanding the required floor area. This configuration is suitable for facilities with limited floor space that still need to accommodate both washing and drying operations within the same working area.
IPSO stacked laundry solutions are developed with washer-extractor and tumble dryer configurations designed to optimize space, reduce the need to move laundry between separate machines, and make better use of available laundry facility space. These products are suitable for commercial laundries, laundry service facilities, and locations where efficient use of available floor space is an important operational requirement.
What Is Stacked Laundry Equipment?
Stacked laundry equipment is a configuration in which a washer-extractor and tumble dryer are positioned one above the other as a single equipment unit. The washer-extractor performs the washing and extraction process, after which the laundry is transferred to the tumble dryer for the drying process.
Positioning the two machines vertically helps reduce the floor space required compared with installing separate washers and dryers side by side. This configuration is worth considering for facilities that need to increase laundry capacity while working within a limited footprint.
Features of Stacked Laundry Equipment
Washer-Extractor and Tumble Dryer in One Configuration
The stacked configuration combines a washer-extractor and tumble dryer, allowing the washing and drying processes to be arranged within a single equipment unit. This setup is suitable for facilities looking to organize their laundry area more compactly and improve operational convenience.
Optimized Installation Footprint
Instead of positioning the washer and dryer side by side on the same floor area, the equipment is designed in a stacked configuration that makes use of vertical space. This is an important advantage for laundry facilities with limited floor space or those looking to maximize the number of machines installed within a given area.
Washing and Drying in One Equipment Unit
Combining a washer-extractor and tumble dryer in one configuration reduces the distance between the two processes, helping minimize the need to move laundry between separate equipment areas. For operations with frequent laundry processing, this configuration can support a more compact and convenient workflow.
High G-Force Extraction
IPSO Stax configurations are developed with 200 G-force extraction, helping remove a significant amount of water from laundry before the drying process. According to IPSO, high extraction force can help reduce drying time and utility consumption during operation.
Design for Convenient Operation and Serviceability
The Stax design provides access to key washer-extractor components to support servicing and maintenance. IPSO also highlights easy access to key washer components as a feature that helps improve serviceability and simplify maintenance operations.
IPSO Stacked Laundry Equipment

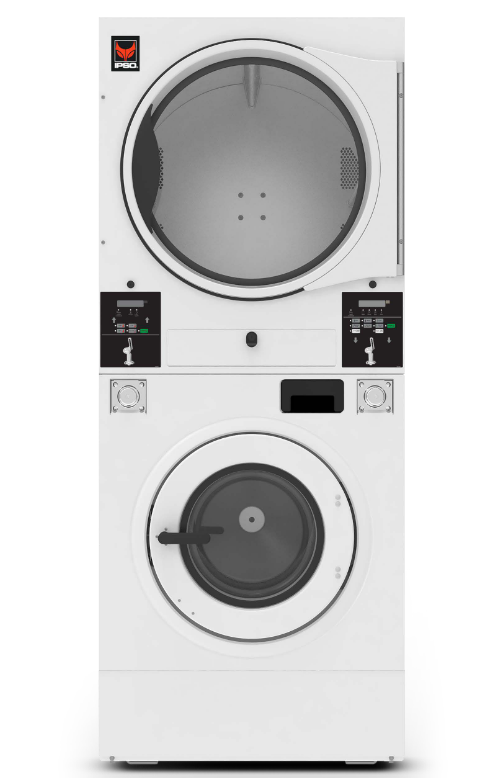

IPSO provides stacked laundry configurations for facilities that need to combine washing and drying within a limited installation area. The IPSO Stax BS30 and BS50 are presented as a washer-extractor and tumble dryer stacked solution designed to increase laundry capacity without requiring additional floor space.
For the Stax-X documentation, the manufacturer identifies the BS30 and BS50 models as configurations combining a washer-extractor and tumble dryer. The documentation also specifies Aries Micro controls, multiple washer cycles, and operating modes for the tumble dryer, depending on the equipment configuration.

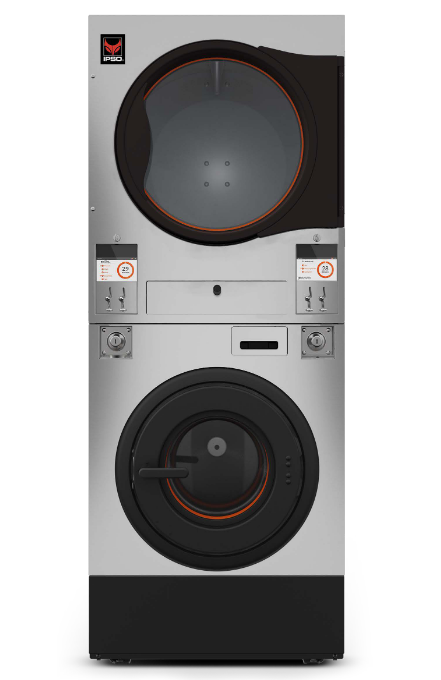

In addition to the Stax-X configuration, PAN also provides IPSO models within the stacked laundry equipment category based on their respective configurations and technical documentation. Each model is evaluated independently in terms of capacity, control configuration, heating source, and installation requirements before being proposed for a specific project.
Applications of Stacked Laundry Equipment
Stacked laundry equipment is suitable for a range of operations that need to optimize available space while maintaining both washing and drying processes, including:
- Commercial laundry facilities.
- Laundromats and laundry service facilities with limited floor space.
- Self-service laundry facilities.
- Laundry facilities serving hotels, accommodation properties, and service establishments.
- Laundry areas that need to increase equipment capacity while working within limited floor space.
- Laundry facilities that require a compact arrangement of washer-extractors and tumble dryers.
Benefits of Stacked Laundry Equipment
- Optimized floor space: positioning the washer and dryer vertically makes better use of available space and reduces the floor area required for the equipment configuration.
- Two laundry processes in one configuration: the washer-extractor and tumble dryer are arranged as one equipment unit, making it easier to organize the laundry area.
- Support for reduced drying time: high extraction force helps remove water from laundry before drying, which can help reduce drying time depending on the type of textile and operating program.
- Reduced laundry handling: the shorter distance between the washer and dryer can help make the laundry processing workflow more convenient.
- Suitable for different laundry operations: configurations can be selected based on capacity, available space, processing requirements, and actual operating conditions.
Choosing the Right Stacked Laundry Equipment
Selecting stacked laundry equipment should be based on both washing and drying requirements rather than washer capacity alone. Important considerations include:
- Total laundry volume to be processed each day.
- Expected number of washing and drying cycles per day.
- Types of textiles and processing requirements for each category.
- Available installation area and ceiling height.
- Electrical supply and heating source required for the tumble dryer.
- Water supply and drainage system for the washer-extractor.
- Ventilation and exhaust requirements for the tumble dryer.
- Control system requirements and payment options when used in self-service laundry operations.
For each project, the equipment configuration should be considered together with the available space and utility infrastructure to ensure that the washer-extractor and tumble dryer can operate together effectively and meet the actual capacity requirements of the laundry facility.
PAN Provides IPSO Stacked Laundry Equipment
PAN provides IPSO stacked laundry solutions for laundry facilities that need to optimize available space and organize washing and drying operations efficiently. Depending on actual requirements, PAN can survey the installation area, review laundry volume, utility conditions, and operating requirements, then propose a suitable model, configuration, and installation solution.
The selection of stacked laundry equipment should also be considered together with other laundry equipment such as flatwork ironers, textile finishing equipment, chemical dosing systems, and supporting systems to develop a solution that fits the overall laundry workflow.
Contact PAN for solution consultation
If your business is looking for IPSO stacked laundry equipment to optimize available space and improve operational efficiency, PAN can support you with needs assessment, technical requirement review, and a suitable configuration proposal based on the actual scale and requirements of your laundry facility.
