TRANSFERON Tunnel Washing System
The TRANSFERON Tunnel Washing System is a continuous tunnel washing solution developed for industrial laundries requiring high-volume textile processing. TRANSFERON is a German industrial laundry equipment manufacturer founded in 1972, with more than 50 years of experience in the development and manufacturing of industrial laundry equipment.
TRANSFERON specializes in Tunnel Washers and Continuous Batch Washing (CBW) Systems, providing systems that can be adapted to the specific requirements of individual industrial laundry operations.
TRANSFERON Tunnel Washer Configurations
TRANSFERON's technical documentation describes two tunnel washer versions: Transflex and Transflex Super. Both versions can be manufactured in Single-drum or Double-drum configurations, with available machine sizes from 7 to 20 compartments.
The appropriate configuration can be determined according to the required washing process, water flow arrangement, laundry throughput and specific requirements of the customer.

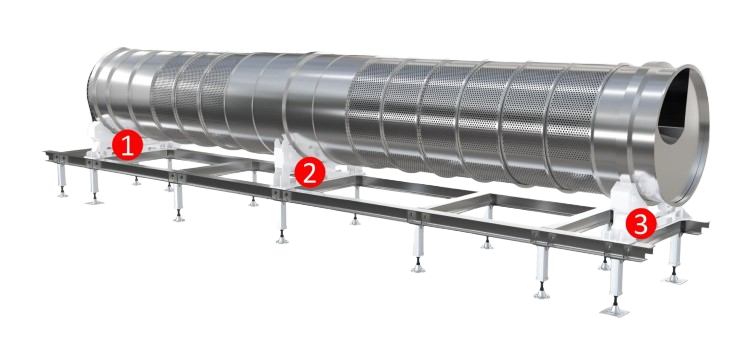

Transflex Design
Transflex combines Single-drum and Double-drum designs. The standard Transflex configuration includes 6 Double-drum sections and can be divided into a 4-zone system according to the water flow.
The system can operate either in the counter-flow bath direction or in the linen flow direction, allowing the washing process to be configured according to the requirements of the laundry operation.
Transflex Super Design
Transflex Super features a complete Double-drum design. Each outer drum has its own water lye box, allowing the bath level inside the drum to be adjusted through the water boxes.
The standard Transflex Super configuration is divided into four bath zones: pre-washing, main-washing, rinsing and neutralizing. These zones can be individually changed according to customer requirements.
Single-drum and Double-drum Configurations
TRANSFERON provides different drum configurations to accommodate different continuous washing processes. The choice between Single-drum and Double-drum execution can be determined according to the tunnel configuration and the required washing process.
The Double-drum configuration allows the washing process to be organized into separate treatment zones and provides control of the washing bath within the individual sections of the system.
Flexible System Configuration
TRANSFERON emphasizes flexibility in adapting its laundry systems to customer requirements. The tunnel washer configuration can be developed around the required washing process, laundry throughput, water flow and the specific operating conditions of the laundry.
This approach allows the tunnel washer to be integrated into a broader CBW production line rather than being treated as an isolated washing machine.
Resource Efficiency and Operational Performance
TRANSFERON states that its industrial laundry systems are developed with a focus on reliable operation and efficient use of resources. The company highlights energy-saving and water-saving technologies as part of its product development, together with solutions designed to reduce operating costs.
The overall system configuration can therefore be considered together with the washing process, water management, chemical application and downstream textile processing requirements.
Integration into an Industrial Laundry Line
The TRANSFERON Tunnel Washer is designed as part of a complete industrial laundry system. Depending on the project, the tunnel washing system can be integrated with other laundry equipment such as Extraction Presses, Batch Dryers, Shuttle Conveyors, Loading Conveyors, Ironers, Folders and Stackers.
Integrating these systems allows the laundry to organize the textile flow from loading and washing through extraction, drying and finishing according to the available space and required production capacity.
Applications of the TRANSFERON Tunnel Washing System
The TRANSFERON CBW Tunnel Washing System is intended for industrial laundry operations requiring continuous or high-volume textile processing. TRANSFERON identifies sectors including hotels, hospitals, resorts, linen rental and institutions among the industries served by its industrial laundry solutions.
The appropriate tunnel configuration, number of compartments, drum design, flow direction and integrated equipment should be determined according to the laundry's throughput, textile types, washing process, available space and operational requirements.
TRANSFERON Tunnel Washing Systems at PAN
PAN provides consultation for TRANSFERON Tunnel Washing Systems based on the actual requirements of each industrial laundry project. PAN can work with businesses to review throughput, textile types, washing processes, available space and operational requirements before proposing a suitable system configuration.
